Barbed Elbow Fittings | Industrial Hose Connectors

Barbed elbow fittings are essential hydraulic connectors designed for secure hose-to-port connections in industrial fluid power systems. These 90-degree fittings combine hose barb connections with ORB or NPT threads, enabling directional flow changes in space-constrained installations. Available in sizes #4 through #20, they're engineered for high-pressure hydraulic applications in construction equipment, industrial machinery, and mobile hydraulic systems. American-made with precision machining and durable steel construction.

Our Range of Products
4601X20X20 | #20 Hose Barb x #20 ORB M 90

4601X20X20 | #20 Hose Barb x #20 ORB M 90

  • Space-saving 90° configuration
  • #20 barb to #20 ORB male
  • Leak-free O-ring boss seal
4601X16X12 | #16 Hose Barb to #12 ORB M 90

4601X16X12 | #16 Hose Barb to #12 ORB M 90

  • 90° elbow for compact connections
  • #16 barb to #12 ORB male fitting
  • 38 units ready to ship
4501X12X16 | #12 Hose Barb to #16 NPT M 90

4501X12X16 | #12 Hose Barb to #16 NPT M 90

  • 90° design for tight installations
  • #12 barb to #16 NPT male thread
  • In stock - ships immediately
4601X20X16 | #20 Hose Barb x #16 ORB M 90

4601X20X16 | #20 Hose Barb x #16 ORB M 90

  • 90° elbow for tight routing
  • #20 barb to #16 ORB male
  • 119 units available
4501X12X12 | #12 Hose Barb to #12 NPT M 90

4501X12X12 | #12 Hose Barb to #12 NPT M 90

  • 90° angle for tight spaces
  • #12 barb to #12 NPT male
  • 67 units in stock
4601X12X12 | #12 Hose Barb to #12 ORB M 90

4601X12X12 | #12 Hose Barb to #12 ORB M 90

  • 90° tight-space elbow
  • #12 barb to #12 ORB male
  • 113 units ready to ship

Showing 1 to 6 of 24 results

Frequently Asked Questions

What thread sizes are available for barbed elbow fittings?

Barbed elbow fittings are available in sizes #4, #6, #8, #10, #12, #16, and #20 to accommodate various hydraulic system requirements.

What's the difference between ORB and NPT threaded connections?

Can I use these fittings in high-pressure hydraulic systems?

What is the advantage of 90-degree elbow fittings?

Are these fittings compatible with standard hydraulic hose?

What materials are the barbed elbow fittings made from?

How quickly can I receive my barbed elbow fittings?

Didn't find what you're looking for?

Talk to our experts for custom solutions and tailored guidance.

Industries We Serve

Construction Equipment

Construction Equipment

Essential for excavators, bulldozers, and loaders requiring reliable hydraulic connections in compact spaces.

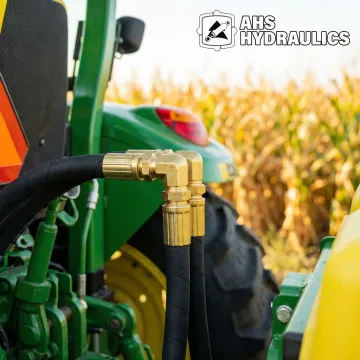

Agricultural Machinery
